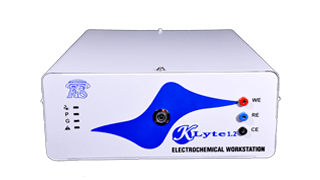

K-Lyte 1.2

₹10,000.00

Potentiostat suited for research. Supports CV, LSV, Chronoamperometry, Pulsed Voltammetry (SCP, NPV, DPV, SWV), OCP Measurement, Tafel Analysis, Linear Polarization.

9 in stock

SKU: k-lyte-1-2-1 Category:

Description

Product Code: K02

Potentiostat suited for research. Supports CV, LSV, Chronoamperometry, Pulsed Voltammetry (SCP, NPV, DPV, SWV), OCP Measurement, Tafel Analysis, Linear Polarization.

K-Lyte 1.2 is a high-end Potentiostat, capable of performing many important electroanalytical techniques for physical electrochemistry, nanotechnology, corrosion, sensor. This instrument is quite suitable for measurements in both the aqueous and non-aqueous systems. It is sensitive enough to record electrical signals in the nano ampere range.

Specifications

Methods
  • Linear Sweep Voltammetry
  • Cyclic Voltammetry
  • Chronoamperometry
  • OCP Measurement
  • Tafel Analysis
  • Linear Polarization
  • Pulsed Voltammetry (SCP, NPV, DPV & SWV)
  • I-V_Pot
Electrode Configuration 2 Electrode & 3 Electrode
Applied Voltage Range ±5 V, ± 10V
Compliance Voltage Upto ±15 V
Applied Potential Resolution Up to 150 µV
Applied Potential Accuracy Within 0.05% of voltage scale
Scan Rate 1 µV/s to 1000 mV/s
Maximum Current ±1A Continuous & ±1.2 A Peak
Current Ranges 8 Ranges (100 nA, 1 µA, 10 µA, 100 µA, 1 mA, 10 mA & 1A)
Current Resolution 15 pA (at 100 nA Current Range )
Reference Input Impedance > 10 Teraohm
ADC & DAC Resolution 16 bits
Input Bias Current < 30 pA
Unity Gain Bandwidth 1.4 MHz
Control Software Control through computer
Communication USB interface communication with the computer

Downloads

KLyte_1.2_Manual.pdf
