₹85,000.00
Product Code: K02
Potentiostat suited for research. Supports CV, LSV, Chronoamperometry, Pulsed Voltammetry (SCP, NPV, DPV, SWV), OCP Measurement, Tafel Analysis, Linear Polarization.
100 in stock
Product Code: K01
Basic Potentiostat. Supports CV, LSV, Chronoamperometry

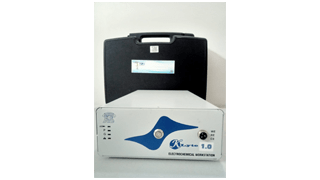

K-Lyte 1.0 is a basic Potentiostat dedicated to initiate electrochemistry research at undergraduate and postgraduated level. It includes basic potentiostatic methods. This instrument is suitable to work in aqueous and most of the non-aqueous systems. It is capable to record electrical signals upto the nanoampere range.
| Methods |
|
| Electrode Configuration | 2 Electrode & 3 Electrode |
| Applied Voltage Range | -2.0 V to +2.0 V |
| Compliance Voltage | Upto +-12 V |
| Applied Potential Resolution | Up to 1 mV |
| Applied Potential Accuracy | Within 0.1% of voltage scale |
| Scan Rate | 1 mV/s to 100 mV/s |
| Maximum Current | ±10 mA Continuous & ±20 mA Peak |
| Current Ranges | 5 Ranges (1uA, 10 µA, 100 µA, 1 mA & 10 mA) |
| Current Resolution | 80 nA (at 10 µA Current Range ) |
| Reference Input Impedance | > 1 GigaOhm |
| ADC & DAC Resolution | 12 bits |
| Input Bias Current | < 30 pA |
| Unity Gain Bandwidth | 1.4 MHz |
| Control | Software Control through computer |
| Communication | USB interface communication with the computer |
