Description
Product Code: K05
Electrochemical Impedance Spectroscopy (EIS) is an electrochemical techniques to measure the impedance of a system in dependence of the AC potentials frequency.

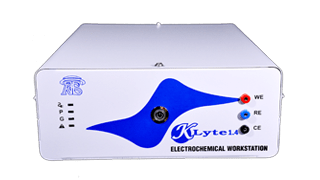

K-Lyte Z
₹590,000.00
Specifications
| Methods | EIS |
| Cell Connection | 2, 3 |
| Input offset voltage | 150 mV |
| Compliance Voltage | ±15V |
| Slew Rate | 2200 V/ µs |
| Rise Time | 40 ns/V |
| Input Impedance | 700 Ω |
| Unity Gain Bandwidth | 90 MHz |
| Output Short Circuit Current | ±90 mA |
| Input Bias/Leakage Current | 500 nA |
| DAC and ADC bit | 14 bit |
| Data Acquisition Rate/Sampling Rate | 125 MS/s |
| CMRR | 110 dB |
| Rise/Fall Time | 4 ns |
| EIS | |
| Impedance measuring range | > 10 GΩ to 10 MΩ |
| Applied Frequency range | 100 mHz to 2 MHz |
| Applied Wave Options | Linear & Logarithmic |
| Signal Type | Sine wave |
| Data Presentation | Nyquist, Bode |
| Data Analysis & Fitting | Available |
| AC Voltage Amplitude | ±1 V |
| Frequency Resolution | 1 mHz |
| DC Offset Range | ±5 V |
| Chassis Information | |
| L x W x H | 320 mm x 220 mm x 90 mm |
| Features | |
| Auto Current Ranging | Zero Resistance Ammeter |
